Treafik

Certificaten voor meerdere domeinen in Traefik

Zie https://doc.traefik.io/traefik/routing/routers/#certresolver

Treafik

Voorbeeld cmd

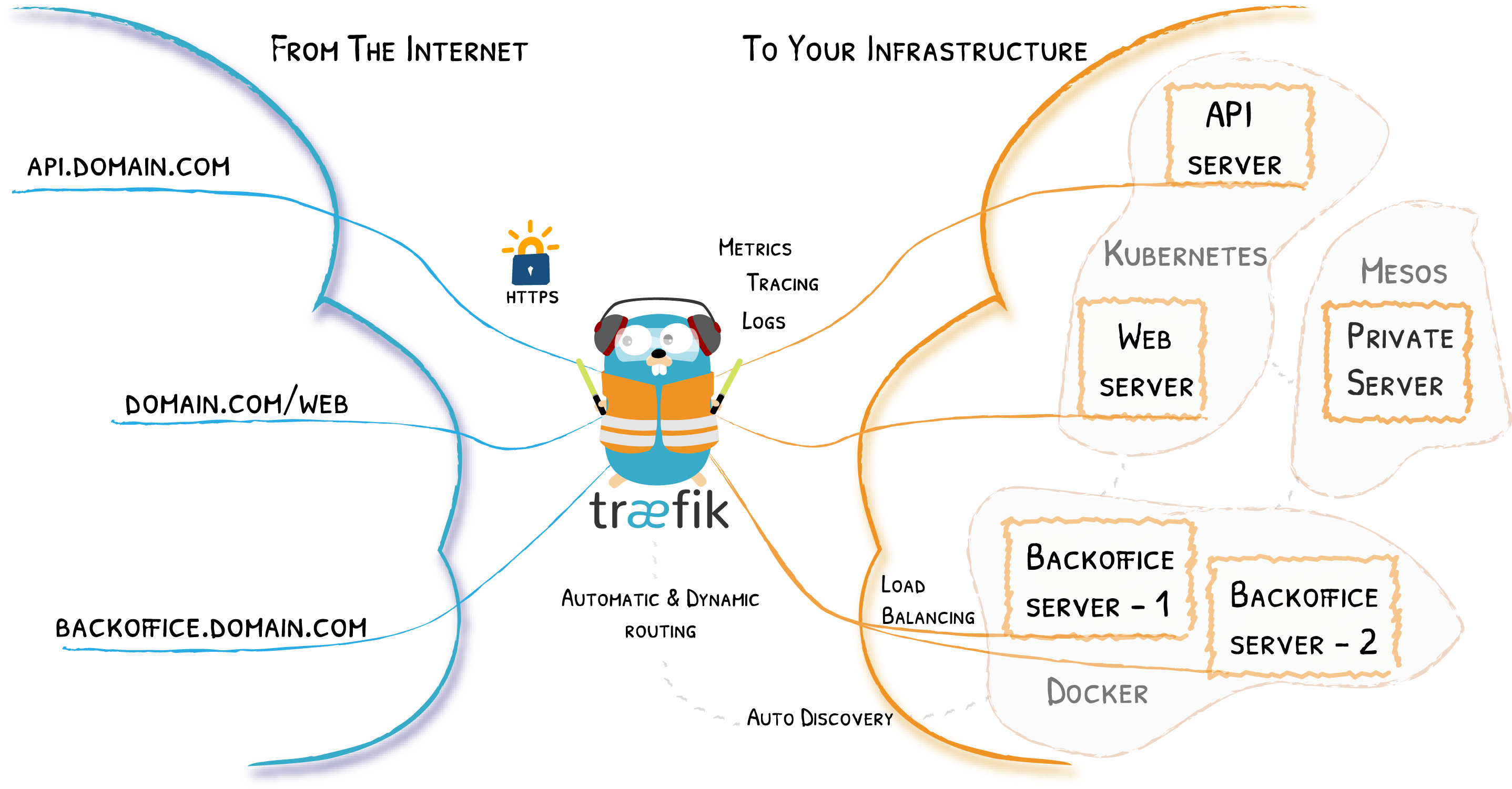

Traefik is een reverse proxy. Dit wil zeggen dat je heel gemakkelijk verschillende services kunt bereiken vanaf het internet zonder elke keer een port open te zetten. De enigeste poort die je moet openzetten is 443. En verwijzen naar het toest (IP) waar Traefik op draait.

In dit voorbeeld gebruiken we een firewall van het met Unifi. Dit kan je ook perfect in de router(modem) van uw provider doen. Voorbeeld cmd

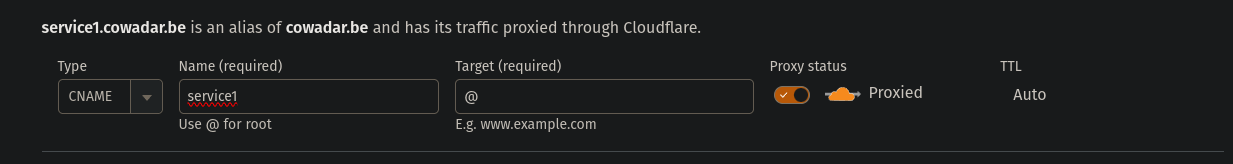

Bij je DNS provider verwijs je een A record door naar je Publiek IP (dit kan ook automatisch gebeuren door DDNS). Voor alle services gebruik je een CNAME record die verwijst naar @ (@ = jouw domein). Voorbeeld cmd Voorbeeld cmd

Installatie bestanden

Als je dat eenmaal gedaan hebt kan je beginnen aan de configuratie van Traefik.

Info

Onze Traefik gebruikt een dynamische file. Dat wilt zeggen dat je als je de configuratie aanpast dat je niet elke keer de docker opnieuw moet genereren.

Info

Graag volgens volgende map structuur maken.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
docker
  ├── appdata
  │     ├── acme
  │     │   └── acme.json
  │     ├── logs
  │     │   ├── access.log
  │     │   └── traefik.log
  │     └── rules
  │         ├── app-name.yml
  │         ├── chain-basic-auth.yml
  │         ├── chain-no-auth.yml
  │         ├── middlewares-basic-auth.yml
  │         ├── middlewares-buffering.yml
  │         ├── middlewares-crowdsec.yml
  │         ├── middlewares-headers.yml
  │         ├── middlewares-rate-limit.yml
  │         ├── middlewares-secure-headers.yml
  │         ├── middlewares-websocket.yml
  │         └── tls-opts.yml
  └──docker-compose
        ├── secrets
        │   ├── basic_auth_credentials
        │   └── cf_dns_api_token

        ├── compose.yml
        └──env
Configuratie bestanden

Warning

Vergeet niet alle gegevens naar die van jou te veranderen!!

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
services:
  # Traefik 3 - Reverse Proxy
  traefik:
    container_name: traefik
    image: traefik:latest
    security_opt:
      - no-new-privileges:true
    restart: unless-stopped
    # depends_on:
    #   - socket-proxy
    networks:
      - socket_proxy
      #- swarm-traefik
    command: # CLI arguments
      - --global.checkNewVersion=true
      - --global.sendAnonymousUsage=false
      - --entrypoints.web-external.address=:80
      - --entrypoints.web-internal.address=:81
      - --entrypoints.websecure-external.address=:444
      - --entrypoints.websecure-internal.address=:443
      # - --entrypoints.traefik.address=:8080
      - --entrypoints.web-external.http.redirections.entrypoint.to=websecure-external
      - --entrypoints.web-external.http.redirections.entrypoint.scheme=https
      - --entrypoints.web-external.http.redirections.entrypoint.permanent=true
      - --entrypoints.web-internal.http.redirections.entrypoint.to=websecure-internal
      - --entrypoints.web-internal.http.redirections.entrypoint.scheme=https
      - --entrypoints.web-internal.http.redirections.entrypoint.permanent=true
      - --api=true
      - --api.dashboard=true
      # - --api.insecure=true
      # - --serversTransport.insecureSkipVerify=true
      # Allow these IPs to set the X-Forwarded-* headers - Cloudflare IPs: https://www.cloudflare.com/ips/
      - --entrypoints.websecure-external.forwardedHeaders.trustedIPs=$CLOUDFLARE_IPS,$LOCAL_IPS
      - --entrypoints.websecure-internal.forwardedHeaders.trustedIPs=$CLOUDFLARE_IPS,$LOCAL_IPS
      - --log=true
      - --log.filePath=/logs/traefik.log
      - --log.level=INFO # (Default: error) DEBUG, INFO, WARN, ERROR, FATAL, PANIC
      - --accessLog=true
      - --accessLog.filePath=/logs/access.log
      - --accessLog.bufferingSize=100 # Configuring a buffer of 100 lines
      - --accessLog.filters.statusCodes=204-299,400-499,500-599
      - --providers.docker=true
      # --providers.docker.endpoint=unix:///var/run/docker.sock # Disable for Socket Proxy. Enable otherwise.
      - --providers.docker.endpoint=tcp://socket-proxy:2375 # Enable for Socket Proxy. Disable otherwise.
      - --providers.docker.exposedByDefault=false
      - --providers.docker.network=t3_proxy
      # - --providers.docker.swarmMode=true # Traefik v2 Swarm
      # - --providers.swarm.endpoint=tcp://127.0.0.1:2377 # Traefik v3 Swarm
      - --entrypoints.websecure-external.http.tls=true
      - --entrypoints.websecure-external.http.tls.options=tls-opts@file
      - --entrypoints.websecure-internal.http.tls=true
      - --entrypoints.websecure-internal.http.tls.options=tls-opts@file
      # Add dns-cloudflare as default certresolver for all services. Also enables TLS and no need to specify on individual services
      - --entrypoints.websecure-external.http.tls.certresolver=dns-cloudflare
      - --entrypoints.websecure-external.http.tls.domains[0].main=$DOMAINNAME_1
      - --entrypoints.websecure-external.http.tls.domains[0].sans=*.$DOMAINNAME_1
      - --entrypoints.websecure-internal.http.tls.certresolver=dns-cloudflare
      - --entrypoints.websecure-internal.http.tls.domains[1].main=$DOMAINNAME_2
      - --entrypoints.websecure-internal.http.tls.domains[1].sans=*.$DOMAINNAME_2
      # - DOMAINS-PLACEHOLDER-DO-NOT-DELETE
      - --providers.file.directory=/rules # Load dynamic configuration from one or more .toml or .yml files in a directory
      - --providers.file.watch=true # Only works on top level files in the rules folder
      # - --certificatesResolvers.dns-cloudflare.acme.caServer=https://acme-staging-v02.api.letsencrypt.org/directory # LetsEncrypt Staging Server - uncomment when testing
      - --certificatesResolvers.dns-cloudflare.acme.storage=/acme.json
      - --certificatesResolvers.dns-cloudflare.acme.dnsChallenge.provider=cloudflare
      - --certificatesResolvers.dns-cloudflare.acme.dnsChallenge.resolvers=1.1.1.1:53,1.0.0.1:53
      - --certificatesResolvers.dns-cloudflare.acme.dnsChallenge.delayBeforeCheck=120 # To delay DNS check and reduce LE hitrate
      #- --certificatesResolvers.dns-cloudflare.acme.dnsChallenge.disablePropagationCheck=true
      # - METRICS-PLACEHOLDER-DO-NOT-DELETE
    ports:
      - "80:80"
      - "81:81"
      - "443:443"
      - "444:444"
      # - "8080:8080"
    volumes:
      - $APPDATADIR/traefik/rules:/rules
      # - /var/run/docker.sock:/var/run/docker.sock:ro # Use Docker Socket Proxy instead for improved security
      - $APPDATADIR/traefik/acme/acme.json:/acme.json
      - $LOGDIR/traefik:/logs
    environment:
      - TZ=$TZ
      - CF_DNS_API_TOKEN_FILE=/run/secrets/cf_dns_api_token
      - HTPASSWD_FILE=/run/secrets/basic_auth_credentials # HTTP Basic Auth Credentials
      - DOMAINNAME_1 # Passing the domain name to traefik container to be able to use the variable in rules.
      - DOMAINNAME_2
      # - TRAEFIK_AUTH_BYPASS_KEY
    secrets:
      - cf_dns_api_token
      - basic_auth_credentials
    labels:
      - "traefik.enable=true"
      # HTTP Routers
      - "traefik.http.routers.traefik-rtr.entrypoints=websecure-internal,websecure-external"
      - "traefik.http.routers.traefik-rtr.rule=Host(`traefik-dashboard.$DOMAINNAME_1`)"
      # Services - API
      - "traefik.http.routers.traefik-rtr.service=api@internal"
      # Middlewares
      - "traefik.http.routers.traefik-rtr.middlewares=chain-basic-auth@file" # For Basic HTTP Authentication

  # Traefik Error Log (traefik.log) for Dozzle
  traefik-error-log:
    container_name: traefik-error-log
    image: alpine
    volumes:
      - $LOGDIR/traefik/traefik.log:/var/log/stream.log
    command:
      - tail
      - -f
      - /var/log/stream.log
    network_mode: none
    restart: unless-stopped

  # Traefik Access Log (access.log) for Dozzle
  traefik-access-log:
    container_name: traefik-access-log
    image: alpine
    volumes:
      - $LOGDIR/traefik/access.log:/var/log/stream.log
    command:
      - tail
      - -f
      - /var/log/stream.log
    network_mode: none
    restart: unless-stopped

  # Traefik Certs Dumper - Extract LetsEncrypt Certificates - Traefik2 Compatible
  traefik-certs-dumper:
    container_name: traefik-certs-dumper
    image: humenius/traefik-certs-dumper:latest
    security_opt:
      - no-new-privileges:true
    restart: unless-stopped
    network_mode: none
    # command: --restart-containers container1,container2,container3
    volumes:
      - $APPDATADIR/traefik/acme:/traefik:ro
      - $APPDATADIR/traefik-certs/$DOMAINNAME_1:/output:rw
      # - /var/run/docker.sock:/var/run/docker.sock:ro # Only needed if restarting containers (use Docker Socket Proxy instead)
    environment:
      DOMAIN: $DOMAINNAME_1

  # Cloudflare Companion
  cloudflare-companion:
    image: tiredofit/traefik-cloudflare-companion
    container_name: cloudflare-companion
    volumes:
      - $LOGDIR:/logs
      # - /var/run/docker.sock:/var/run/docker.sock
    secrets:
      - cf_dns_api_token
    environment:
      - TIMEZONE=$TZ
      - LOG_TYPE=BOTH
      - LOG_LEVEL=INFO
      - TRAEFIK_VERSION=2
      - CF_EMAIL=$CF_EMAIL
      - CF_TOKEN=$CF_GLOBAL_TOKEN
      - RC_TYPE=CNAME
      - DOMAIN1_PROXIED=TRUE
      - TARGET_DOMAIN=$DOMAINNAME_1
      - DOMAIN1=$DOMAINNAME_1
      - DOMAIN1_ZONE_ID=$DOMAIN1_ZONE_ID
      - DOCKER_HOST=tcp://socket-proxy:2375
      - REFRESH_ENTRIES=TRUE
      #- DOCKER_CERT_PATH=/docker-certs
      #- DOCKER_TLS_VERIFY=1
      - TRAEFIK_FILTER_LABEL=traefik.constraint
      - TRAEFIK_FILTER=proxy-public
    # depends_on:
    #   - socket-proxy
    networks:
      - socket_proxy
    restart: always
    # labels:
      # Add hosts specified in rules here to force cf-companion to create the CNAMEs
      # Since cf-companion creates CNAMEs based on host rules, this a workaround for non-docker/external apps
      # - "traefik.http.routers.cf-companion-rtr.rule=HostHeader(`vault.$DOMAINNAME_1`) || HostHeader(`ha.$DOMAINNAME_1`) || HostHeader(`overseerr.$DOMAINNAME_1`) || HostHeader(`nas.$DOMAINNAME_1`) || HostHeader(`todo.$DOMAINNAME_1`) || HostHeader(`auth.$DOMAINNAME_1`)"
      # - traefik.http.routers.example.rule=Host(`ha.$DOMAINNAME_1`) || Host(`overseerr.$DOMAINNAME_1`)

networks:
  socket_proxy:
    external: true
  swarm-traefik:
    external: true

secrets:
  cf_dns_api_token:
    file: $SECRETDIR/cf_dns_api_token
  basic_auth_credentials:
    file: $SECRETDIR/basic_auth_credentials

1
2
3
4

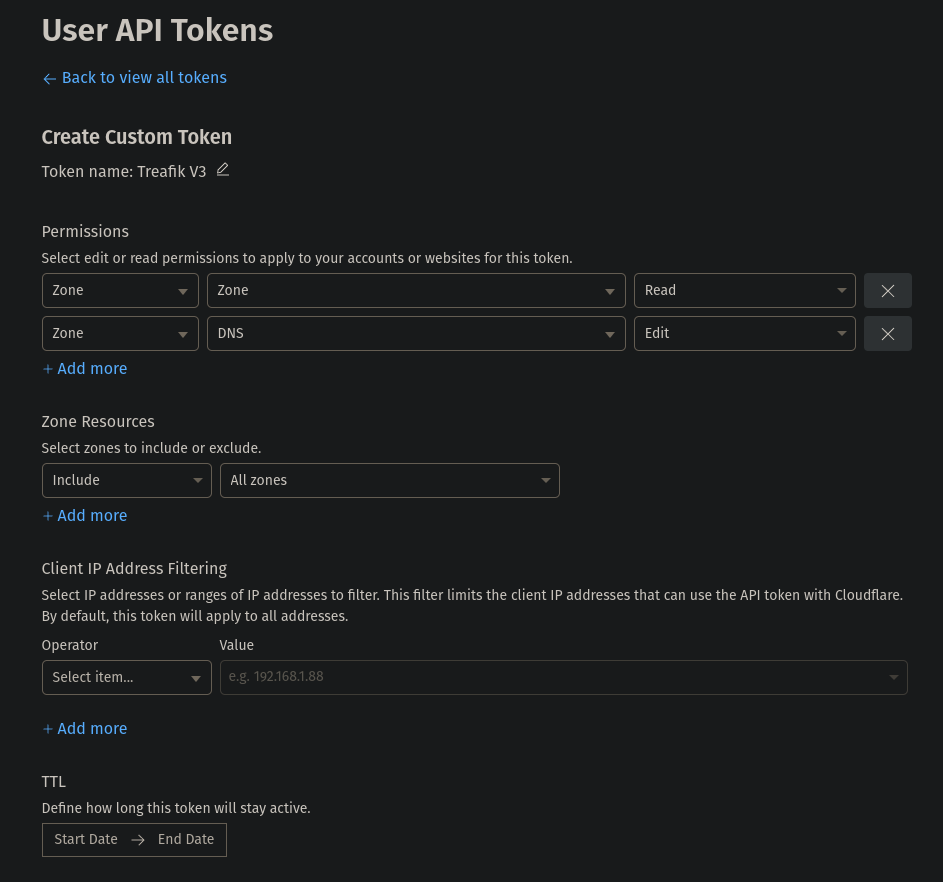

# API token Cloudflare
# Cloudflare --> Right above user --> Appearance --> API tokens --> Create token
# Kies 1 of meer domeinen
# Plain tekst hieronder

Voorbeeld cmd

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
###### Cloudflare
CF_EMAIL=<cloudflare-email>
DOMAIN1_ZONE_ID=<zone-id>
CF_GLOBAL_TOKEN=<global-token>

###### Domein namen
DOMAINNAME_1=example.com
DOMAINNAME_2=example.local

###### Directory paden
APPDATADIR=/path/to/appdata
LOGDIR=/path/to/logs
SECRETDIR=/path/to/secrets

###### Timezone
TZ=Europe/Brussels

###### IP's
CLOUDFLARE_IPS=173.245.48.0/20,103.21.244.0/22,103.22.200.0/22,103.31.4.0/22,141.101.64.0/18,108.162.192.0/18,190.93.240.0/20,188.114.96.0/20,197.234.240.0/22,198.41.128.0/17,162.158.0.0/15,104.16.0.0/13,104.24.0.0/14,172.64.0.0/13,131.0.72.0/22
LOCAL_IPS=127.0.0.1/32,10.0.0.0/8,192.168.0.0/16,172.16.0.0/12

Warning

Declaring the user list

Note: when used in docker-compose.yml all dollar signs in the hash need to be doubled for escaping. To create a user:password pair, the following command can be used:

1
echo $(htpasswd -nb user password) | sed -e s/\\$/\\$\\$/g

Also note that dollar signs should NOT be doubled when they not evaluated (e.g. Ansible docker_container module).

1
2
# Voorbeeld credentials - VERVANG DEZE!
admin:$$2y$$05$$8eA6bz6E7J/ChsRFuD8njeW45yfJutYYb4HxwgUir3HP4EsggP/QNo0.

Warning

Deze file laat je leeg, deze wordt automatisch aangevuld door Traefik. sudo chmod 755 acme.json

Zorg ervoor dat de permissies correct zijn:

1
2
touch acme.json
chmod 600 acme.json

Warning

Pas de gegevens aan voor jouw applicatie!

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
http:
  routers:
    <APP>-rtr:
      rule: "Host(`<APP>.{{env "DOMAINNAME_1"}}`)"
      entryPoints:
        - websecure-external
        - websecure-internal
      middlewares:
        - chain-no-auth
      service: <APP>-svc
      tls:
        certResolver: dns-cloudflare
        options: tls-opts@file

  services:
    <APP>-svc:
      loadBalancer:
        servers:
          - url: "http://<ip:port>" # Bijvoorbeeld: http://192.168.1.100:8080

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
http:
  middlewares:
    chain-basic-auth:
      chain:
        middlewares:
          - middlewares-rate-limit
          - middlewares-secure-headers
          # - crowdsec-bouncer
          - middlewares-basic-auth
          # - middlewares-compress

1
2
3
4
5
6
7
8
9
http:
  middlewares:
    chain-no-auth:
      chain:
        middlewares:
          - middlewares-rate-limit
          - middlewares-secure-headers
          # - crowdsec-bouncer
          # - middlewares-compress

1
2
3
4
5
6
7
8
http:
  middlewares:
    middlewares-basic-auth:
      basicAuth:
        # users:
        #   - "user:$apsdfswWvC/6.$E3FtsfTntPC0wVJ7IUVtX1"
        usersFile: "/run/secrets/basic_auth_credentials"
        realm: "Traefik Basic Auth"

1
2
3
4
5
6
7
8
9
http:
  middlewares:
    middlewares-buffering:
      buffering:
        maxResponseBodyBytes: 2000000
        maxRequestBodyBytes: 10485760
        memRequestBodyBytes: 2097152
        memResponseBodyBytes: 2097152
        retryExpression: "IsNetworkError() && Attempts() <= 2"

1
2
3
4
5
6
http:
  middlewares:
    crowdsec-bouncer:
      forwardauth:
        address: http://crowdsec-traefik-bouncer:8080/api/v1/forwardAuth
        trustForwardHeader: true

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
http:
  middlewares:
    default-headers:
      headers:
        browserXssFilter: true
        contentTypeNosniff: true
        forceSTSHeader: true
        stsIncludeSubdomains: true
        stsPreload: true
        stsSeconds: 31536000
        customFrameOptionsValue: "SAMEORIGIN"

1
2
3
4
5
6
http:
  middlewares:
    middlewares-rate-limit:
      rateLimit:
        average: 100
        burst: 200

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
http:
  middlewares:
    middlewares-secure-headers:
      headers:
        accessControlAllowMethods:
          - GET
          - OPTIONS
          - PUT
        accessControlMaxAge: 100
        hostsProxyHeaders:
          - "X-Forwarded-Host"
        stsSeconds: 63072000
        stsIncludeSubdomains: true
        stsPreload: true
        forceSTSHeader: true # This is a good thing but it can be tricky. Enable after everything works.
        customFrameOptionsValue: SAMEORIGIN # https://developer.mozilla.org/en-US/docs/Web/HTTP/Headers/X-Frame-Options
        contentTypeNosniff: true
        browserXssFilter: true
        referrerPolicy: "same-origin"
        permissionsPolicy: "camera=(), microphone=(), geolocation=(), payment=(), usb=()"
        customResponseHeaders:
          X-Robots-Tag: "none,noindex,nofollow,noarchive,nosnippet,notranslate,noimageindex" # disable search engines from indexing home server
          server: "" # hide server info from visitors
        customRequestHeaders:
          X-Forwarded-Proto: https

1
2
3
4
5
6
http:
  middlewares:
    sslheader:
      headers:
        customRequestHeaders:
          X-Forwarded-Proto: "https"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
tls:
  options:
    tls-opts:
      minVersion: VersionTLS12
      cipherSuites:
        - TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256
        - TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
        - TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384
        - TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
        - TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305
        - TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305
        - TLS_AES_128_GCM_SHA256
        - TLS_AES_256_GCM_SHA384
        - TLS_CHACHA20_POLY1305_SHA256
        - TLS_FALLBACK_SCSV # Client is doing version fallback. See RFC 7507
      curvePreferences:
        - CurveP521
        - CurveP384
      sniStrict: true

Run

Als je alle bovenstaande stappen gedaan hebt voer je het volgende commado in de terminal in dezelfde map als docker compose.

1
docker compose up -d

Warning

Check de acme.json deze zou ingevuld moeten worden en daar zie je de certificaten.

Configureer traefik.yaml

Zoals eerder gezegt is deze file dynamisch. copy past de code voor elke (sub)domein.

traefik.yml edit
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
routers:
            sub:
            entryPoints:
                - "https"
            rule: "Host(`sub.domain.be`)"
            middlewares:                      # Desable This if you having troubles
                - default-headers               # Learn more about Middlewares
                - https-redirectscheme          #
            tls: {}
            service: sub

            sub2:
            entryPoints:
                - "https"
            rule: "Host(`sub2.domain.be`)"
            middlewares:
                - default-headers
                - https-redirectscheme
            tls: {}
            service: sub2


        #endregion
        #region services
        services:
            sub:
            loadBalancer:
                servers:
                - url: "http://172.30.0.50:5042"
                passHostHeader: true

            sub2:
            loadBalancer:
                servers:
                - url: "http://172.30.0.51:5042"
                passHostHeader: true

Advanced

U Kunt ook traefik zijn configuratie automatisch laten verlopen door middel van labels op je docker containers te zetten. De configuratie bij uw DNS provider zal nog steeds handmatig moeten gebeuren.

Labels
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
    labels:
    # if you are not using traefik, comment out labels
    - "traefik.enable=true"
    - "traefik.http.routers.portainer.entrypoints=http"
    - "traefik.http.routers.portainer.rule=Host(`pihole.domain.be`)"
    - "traefik.http.middlewares.portainer-https-redirect.redirectscheme.scheme=https"
    - "traefik.http.routers.portainer.middlewares=portainer-https-redirect"
    - "traefik.http.routers.portainer-secure.entrypoints=https"
    - "traefik.http.routers.portainer-secure.rule=Host(`pihole.domain.be`)"
    - "traefik.http.routers.portainer-secure.tls=true"
    - "traefik.http.routers.portainer-secure.service=portainer"
    - "traefik.http.services.portainer.loadbalancer.server.port=9000"
    - "traefik.docker.network=proxy"
